BLDC Motor

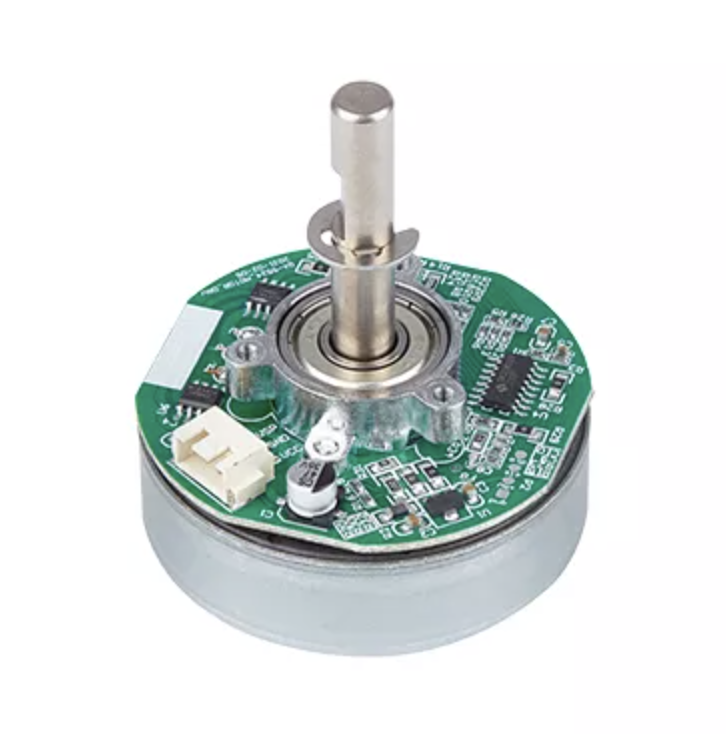

A Three-Phase Brushless DC Motor (BLDC Motor) is a synchronous electric motor powered by a DC source via an integrated inverter/switching power supply. It produces an AC electric signal to drive the motor. The fundamental design inverts the traditional motor setup: the permanent magnets are located on the rotor, and the copper windings are fixed on the stator.

How It Works:

1. Stator: The stator consists of a laminated steel stack with three-phase windings arranged in a specific pattern. When energized in a sequence, these windings create a rotating magnetic field.

2. Rotor: The rotor is made of permanent magnets (typically Rare-Earth magnets like Neodymium), providing a constant magnetic field.

3. Controller (Electronic Commutator): An external electronic controller is the "brain" of the system. It uses position sensors (like Hall-effect sensors) or sensorless techniques to determine the rotor's orientation. Based on this feedback, it precisely switches the current to the stator windings, ensuring the magnetic field continuously "pulls" the rotor, resulting in smooth and continuous rotation.

Key Advantages:

• High Efficiency: No brush friction and reduced I²R losses (copper losses) lead to significantly higher efficiency compared to brushed DC motors, often exceeding 85-90%.

• Long Service Life & High Reliability: The absence of mechanical brushes eliminates the primary source of wear, sparking, and electrical noise. This makes BLDC motors extremely reliable and suitable for demanding applications.

• Excellent Speed-Torque Characteristics: They offer high torque at low speeds, a flat torque curve, and a wide speed range with precise controllability.

• Low Acoustic Noise & Electromagnetic Interference (EMI): Without brushes arcing, operation is quieter and generates less electrical noise.

• High Power Density: They can deliver a large amount of torque relative to their size and weight.

Common Applications:

• Automotive: Electric power steering (EPS), radiator cooling fans, electric water pumps, HVAC blowers.

• Consumer Appliances: Washing machines, refrigerators, air conditioners, drones, computer cooling fans.

• Industrial: CNC machinery, robotics, conveyor systems, pumps, compressors, industrial automation.

• Medical Equipment: Surgical hand tools, pumps, ventilators (where reliability and quiet operation are critical).
