DVI connector

The DVI (Digital Visual Interface) connector is a video display interface developed by the Digital Display Working Group (DDWG) and introduced in 1999. Its primary purpose was to create a standardized protocol for transferring uncompressed digital video from a source (like a computer's graphics card) to a display device (such as an LCD monitor or a projector).

DVI was a critical transitional technology, effectively bridging the gap between the older analog VGA standard and the modern all-digital HDMI and DisplayPort standards. It was designed to be backward compatible with the analog VGA signal, which significantly influenced its design and pin layout.

Key Features & Design:

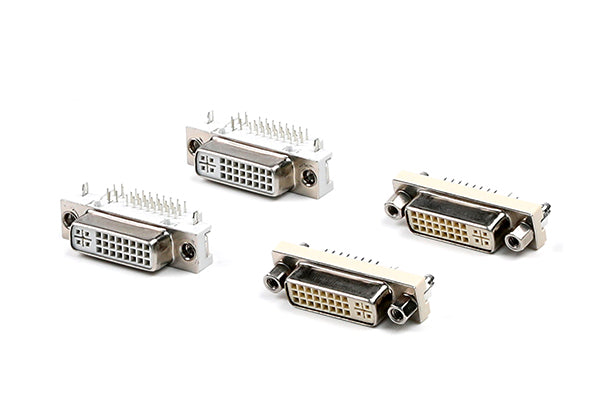

• Distinctive Appearance: DVI connectors are characterized by a wide plug with a asymmetrical array of pins and a flat, bladed "ground bar" on one side, often surrounded by a larger thumbscrew shell for secure mating.

• Pin-Based Interface: Unlike later digital interfaces, DVI relies on a large number of pins to transmit multiple data channels.

• Twisted Pair Design: Digital video signals are transmitted using Transition Minimized Differential Signaling (TMDS) over twisted pairs of wires to reduce EMI and ensure signal integrity.

• Screw Locking Mechanism: Like the D-Sub connector, most DVI connectors feature integrated thumbscrews to secure the connection and prevent accidental disconnection.

Common Types and Configurations:

A key characteristic of DVI is its multiple connector types, which define the supported signals:

1. DVI-D (Digital Only):

   • Purpose: Carries a purely digital signal.

   • Pins: Has a block of pins for the digital TMDS data and no additional analog pins.

   • Use: Standard for connecting digital sources to digital displays. Most common type.

2. DVI-A (Analog Only):

   • Purpose: Carries a purely analog signal.

   • Pins: Has the traditional analog pins (identical to VGA) but in a DVI connector form factor.

   • Use: Rare; primarily used in passive adapters to connect a DVI source to a VGA monitor.

3. DVI-I (Integrated Digital & Analog):

   • Purpose: Carries both digital and analog signals within the same connector.

   • Pins: Features both the block of digital pins and the separate analog pins.

   • Use: Offers maximum flexibility. A DVI-I output can be connected to a digital display (using a DVI-D cable) or an analog VGA display (using a passive DVI-I to VGA adapter).

• Single Link vs. Dual Link: DVI-D and DVI-I connectors also come in Single Link and Dual Link variants. Dual Link connectors have additional pins that double the available bandwidth, enabling support for higher resolutions (up to 2560x1600 @ 60Hz) and faster refresh rates.

Applications and Legacy:

• Historical Significance: DVI was the dominant digital video standard for PC monitors throughout the 2000s and early 2010s. It played a crucial role in the industry-wide shift from analog CRT monitors to digital LCD flat panels.

• Current Status: DVI is now considered a legacy interface. It has been largely superseded by:

  • HDMI: For consumer electronics (TVs, home theater), which also carries audio.

  • DisplayPort: For computer displays and high-performance applications, offering higher bandwidth, better features, and a smaller form factor.

• Modern Use: DVI ports are still found on many graphics cards, monitors, and projectors for backward compatibility, but they are increasingly being phased out on new consumer devices. It remains relevant in professional, industrial, and IT environments where existing equipment must be supported.
