FAKRA Connector: A Brief Introduction

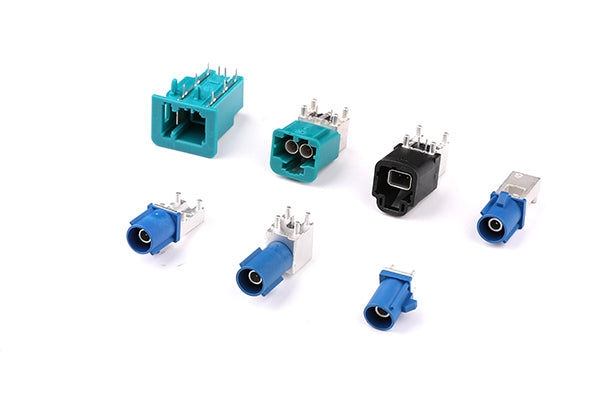

A FAKRA connector (often stylized as Fakra) is a standardized, miniature coaxial connector system developed specifically for the automotive industry. The name "FAKRA" is an abbreviation from the German standards committee "FachAusschussKraftfahrzeuge", which translates to "Automotive Standards Committee." It is the de facto global standard for transmitting radio frequency (RF) signals in vehicles.

Primary Purpose and Key Applications:

The primary function of a FAKRA connector is to provide a reliable, impedance-matched connection for 50-ohm coaxial cables in the harsh automotive environment. Its key applications include:

• GPS Antennas (GNSS)

• Cellular (4G LTE, 5G) Antennas

• AM/FM Radio Antennas

• Satellite Radio (SDARS) Antennas (e.g., SiriusXM)

• Vehicle Keyless Entry Systems

• Tire Pressure Monitoring Systems (TPMS)

• Advanced Driver Assistance Systems (ADAS) requiring RF signals

Distinctive Design Features:

The FAKRA design incorporates several key features to ensure reliability and prevent errors during assembly:

1. Color-Coding and Keying: This is the most recognizable feature. Each connector housing is a specific color and has a unique mechanical keying layout (slots and ribs) to prevent mis-mating. Plugging a blue GPS connector into a green cellular port, for example, is physically impossible. This is critical for preventing costly assembly mistakes on the production line.

2. Coding System: FAKRA connectors are defined by a combination of color and letter (e.g., A=blue, B=white, C=green, D=yellow, etc.). This creates a universal language for engineers and technicians (e.g., "FAKRA C" for a green cellular connector).

3. Durability and Sealing: Designed to meet USCAR and OEM-specific standards, they are built to withstand automotive challenges like vibration, temperature fluctuations (-40°C to +85°C+), and moisture. Many versions feature integrated seals for IP67-rated waterproofing.

4. Push-Pull Locking Mechanism: The connector uses a simple and secure push-to-connect and pull-to-lock mechanism. An audible "click" confirms a proper connection, ensuring the connector is fully seated and secure against vibration.

5. RF Performance: Standard FAKRA connectors are typically rated for frequencies up to 6 GHz, making them suitable for most current applications including 5G. Some specialized versions can handle higher frequencies.

Evolution and Next-Generation Solutions:

While extremely successful, the classic FAKRA connector is relatively large. As the number of RF systems in cars has exploded (e.g., multiple 5G antennas, V2X, multiple GPS), space has become a premium.

This led to the development of next-generation connectors that maintain the FAKRA electrical standard but in a smaller form factor:

• FAKRA-Mini: A compact version of the standard FAKRA, offering about a 50% size reduction while maintaining the same color-coding and keying principles.

• H-MTD® (Hybrid Multi-Tap Data): A more advanced system that combines multiple RF lines (e.g., 2, 4, or 6 coaxial contacts) with additional power and low-speed data contacts into a single, compact connector housing. This is a key enabler for integrated "shark-fin" antenna modules.
