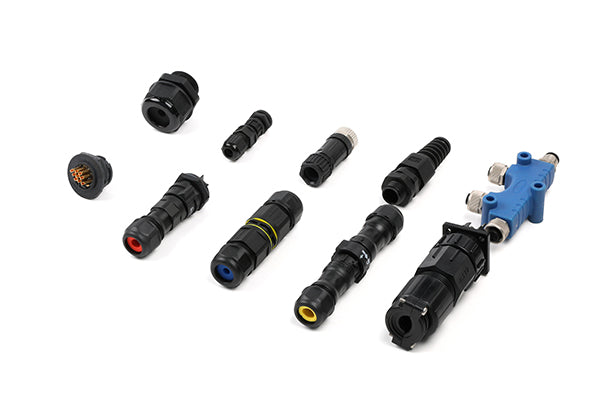

Plastic Circular Connector: A Brief Introduction

A plastic circular connector is a type of electrical connector characterized by its cylindrical housing made primarily from engineered polymers (plastics). It combines the robust, reliable mating concept of a circular connector with the cost-effectiveness, lightweight, and corrosion-resistant properties of plastic materials.

Key Advantages and Characteristics:

1. Lightweight: The plastic construction makes them significantly lighter than their metal-shell counterparts, which is a critical advantage in weight-sensitive applications like automotive wiring and portable devices.

2. Cost-Effective: Plastic materials and molding processes are generally less expensive than machining metal shells, making these connectors an economical choice for high-volume production.

3. Corrosion Resistance: Plastics are inherently immune to rust and resistant to a wide range of chemicals, solvents, and oils, making them ideal for humid or chemically exposed environments.

4. Electrical Insulation: The plastic housing provides excellent dielectric strength and electrical insulation, enhancing safety and preventing short circuits.

5. Design Flexibility: Injection molding allows for complex shapes, integrated features (like latches, keying, and cable strain relief), and custom colors in a single part.

Common Design Features:

• Housing: Made from high-performance, durable thermoplastics such as:

  • Nylon (PA6, PA66): Good overall mechanical strength and chemical resistance.

  • Polybutylene Terephthalate (PBT): Excellent dimensional stability, heat resistance, and dielectric properties.

  • Polypropylene (PP): Good chemical resistance and low cost, often used for less demanding applications.

• Coupling Mechanism: While some use a simple push-pull or snap-fit connection, many higher-performance plastic circular connectors feature a threaded coupling system (often with a plastic thread) for a secure, vibration-resistant seal comparable to metal versions.

• Sealing: Designed to achieve high Ingress Protection (IP) ratings (e.g., IP67, IP68). This is accomplished using integrated O-rings, silicone grommets, and potting at the cable exit to block moisture and dust.

• Contacts: The internal pins and sockets are typically metal (brass, phosphor bronze) and can be plated with tin, silver, or gold. They are often crimped to wires and inserted into the plastic housing insert.

• Polarization and Keying: Molded features ensure connectors can only be mated in the correct orientation, preventing mis-mating and potential damage. This is a crucial feature for applications with multiple identical-looking connectors.

• Strain Relief: Many designs include an integrated or attachable strain relief boot to absorb mechanical stress on the cable, protecting the electrical connections.

Industry Standards and Types:

While many plastic circular connectors are proprietary to specific manufacturers, some have become de facto standards:

• M5, M8, M12 Connectors: These are extremely common in industrial automation. The M12 connector is arguably the most iconic plastic circular connector, used for sensors, actuators, and industrial Ethernet (e.g., Profinet, Ethernet/IP). They are often "coded" by color and keyway (A, B, C, D, X) for different signals and protocols.

• ** automotive Connectors:** Specific plastic circular designs are used in vehicles for sensors, lighting, and other components where environmental sealing is needed but weight and cost are concerns.

• Consumer and Medical Applications: Used in equipment where electrical safety, cleanliness, and chemical resistance are priorities.

Typical Applications:

Plastic circular connectors are found in a vast array of industries, including:

• Factory Automation (IO-Link, Sensor/Actuator networks)

• Robotics

• Medical and Laboratory Equipment

• Transportation (Automotive, Rail)

• Renewable Energy (Solar, Wind)

• Telecommunications Infrastructure

• Outdoor Lighting and signage
